Product Characteristics
1. 1.8mm narrow bezel, perfect picture display
2. 1920*1080 ultra high physical resolution, picture quality performance is more delicate
3. Direct-type LED backlight mode, the brightness performance is more uniform
4. 178° viewing angle
5. Automatic color and image enhancement engine technology to improve image details and make the picture more beautiful
6. Support software spread spectrum technology can effectively reduce EMI radiation, the whole machine is all-metal structure, anti-radiation, anti-magnetic field, anti-strong electric interference
7. Industrial grade design, high reliability, high stability, support 7*24 work. The average trouble-free running time exceeds 55000 hours
8. Wall mounted , pop out bracket and floor stand installations for user option
| Model | 55 inch 3.5mm 3×2 DID LCD video wall indoor advertising display splicing screen |
|---|---|
| Contrast | 3000:1 |
| Display Color | 16.7M |
| Response Time | 8 ms |
| Viewing Angle | 178° H / 178° V |
| Working Frequency | 60 Hz |
| Stitching | 3.5 mm |
| USB Input | USB ×1 (can be upgraded to support video & picture media playback) |
| HDTV Input | HDTV ×1, supports 1920×1080 @60Hz, backward compatible with 4K (customization required) |
| VGA Input | VGA ×1, supports 1920×1080 @60Hz |
| DVI Input | DVI ×1, supports 1920×1080 @60Hz |
| 4K Support | Customization required |
| BNC Input | BNC ×1, supports NTSC / PAL and other formats |
| Remote Receive Input | Debug ×1, remote control signal transmission |
| RJ45 Input | RJ45 ×1, RS232 signal input |
| RJ45 Output | RJ45 ×2, RS232 signal output |
| BNC Output | BNC ×1, supports NTSC / PAL |
| Power Supply | AC 220V 50/60Hz |
| Power Consumption | ≤ 240 W |
| Standby Power | 3 W |
| Operating Temperature | 0 ~ 50 ℃ |
| Storage Temperature | -20 ~ 65 ℃ |
| OSD Language | Simplified Chinese, Traditional Chinese, English, etc. |
| Weight | 18 kg |

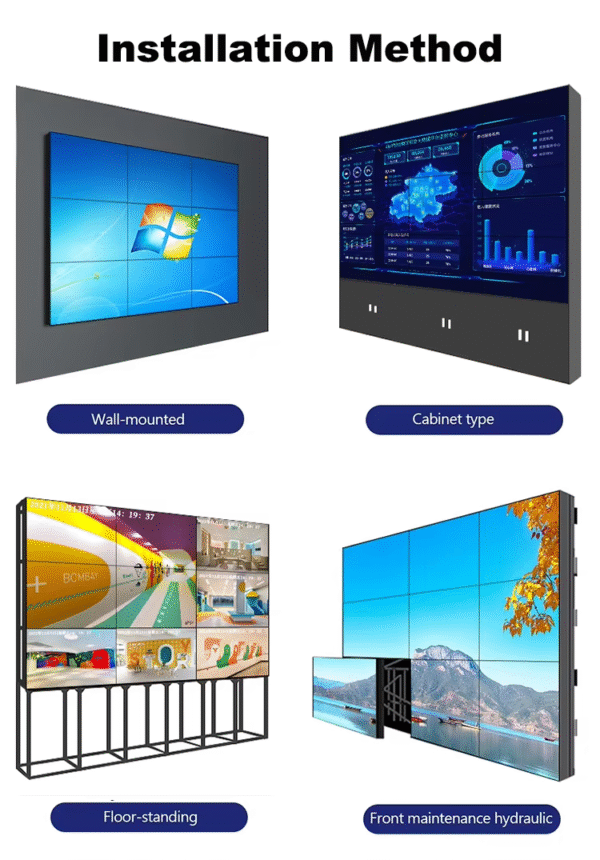

| Installation Method | Wall-mounted / Embedded / Floor-standing / Front maintenance / Cabinet |
